TEV Partial Discharge Test Equipment , 60dBmV Portable Partial Discharge Tester

Name: TEV Partial Discharge Test Equipment 60dBmV Portable Partial Discharge Tester
Brand: HNMC
Price: 1 USD

Brand Name : HNMC

Model Number : MCPD001

Place of Origin : China

MOQ : 1

Price : Negotiable

Supply Ability : 100 sets per month

Packaging Details : Wooden Package

Application : Worksite

Test object : Switchgear, RMU, Transmission line, etc

Display : LCD

Protection : IP54

Weight : 0.3KG (main device)

Dimension : 203mm x 72mm x 36mm

Contact Now

Multi-functional Portable Partial Discharge (PD) Tester

Technical Parameters

TEV
Sensor	Capacitive
Measuring range	0-60dBmV
Resolution	1dB
Accuracy	+/-1dB
The number of pulses per cycle	maximum 655
Minimum pulse frequency	10Hz
Ultrasonic
Measuring range	-7 to 68 dB μV
Resolution	1dB
Accuracy	+/-1dB
The sensor sensitivity	-65dB (0dB = 1volt/ bar RMS SPL)
Sensor center frequency	40 kHz
Sensor diameter	16mm
Heterodyne frequency	38.4kHz

Features

1) Detect and measure PD activities as numerical value in both ultrasonic and TEV mode
2) Test different assets such as switch gear, RMU, and etc.
3) User-friendly and backlit LCD display, key-press operation.
4) With self-test function, easy to know the performance status of the unit.
5) Test data can be saved in the unit and also can be upload to PC
6) With chargeable battery for power supply
7) Protection: IP54
8) Size: 203mm x 72mm x 36mm
9) Weight: 0.3KG
10) Power supply: 3.7V 3.8Ah lithium battery, chargeable

Battery charger
Rated voltage: 90-264V AC
Frequency: 47 - 63Hz
Charging voltage: 6V DC
Charging current: 500 mA
Required to fully charge time: 8 hours

TEV Partial Discharge Test Equipment , 60dBmV Portable Partial Discharge Tester

Main Accessories & Specs

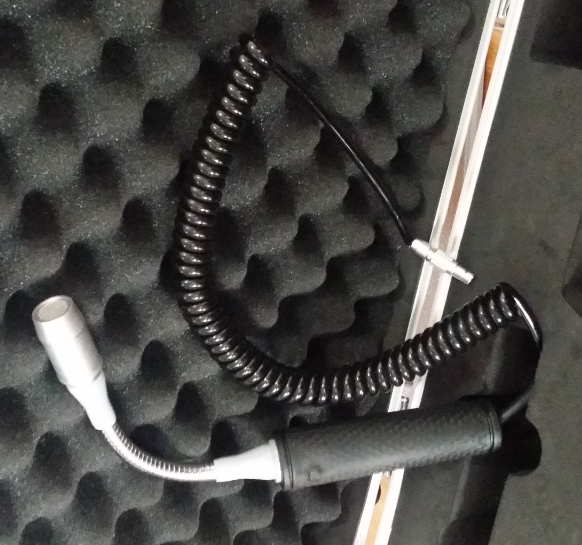

1. Flexible sensor (AA)
Option for probe tight spaces (switchgear overhead cable)

Overhead cable:40kHz
sensivity:≤40dB(V/uPa)

2. Function checker

Used for verifying the working status of PD detector before measuring switchgear, transmission line and

other electrical equipments, etc
