Portable Partial Discharge Test Kit Inbuilt Ultrasonic Sensor

Name: Portable Partial Discharge Test Kit Inbuilt Ultrasonic Sensor
Brand: HNMC
Price: 1 USD

Portable Partial Discharge Test Kit Inbuilt Ultrasonic Sensor Manufactures

Brand Name : HNMC

Model Number : MCPD002

Place of Origin : China

MOQ : 1 set

Price : Negotiable

Payment Terms : T/T

Supply Ability : 100 set

Delivery Time : 20-25 Days

Packaging Details : Carton package

Name : Partial Discharge Detector

Model : MCPD002

Type : Hand-hold

Sensor : UHF AE TEV HFCT, ultrasonic sensor, built-in TEV sensor

Test frequency band : 10KHZ-300KHZ

Operation : Touch screen

Contact Now

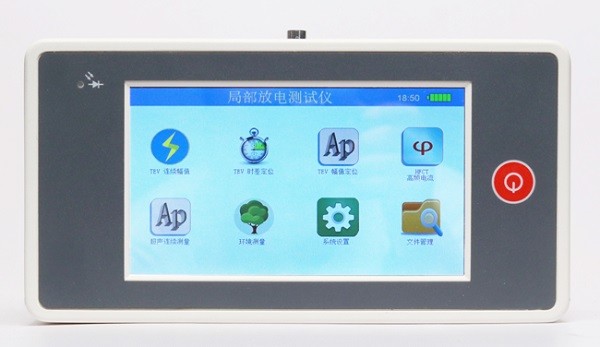

Partial Discharge Detector MCPD002

Main Features

1) 7”LCD display, touch screen

2) Partial discharge test and location of GIS, Switchgear, Cable tray, cable joint, insulators & LBS

on transmission line, and etc

3) Test result can show discharge strength, discharge phase, history data, etc

4) With multi testing way including TEV, ultrasonic, HFCT, infrared temperature test and etc.

5) Multi independent test channels showing on same screen at same time, with extension function

6) Inbuilt solid state SSD storage not less than 256G for storing data and patterns

7) With test data management, test object management and test task management function,

convenient for data analysis

8) Can test ambient temperature and humidity of test object

9) 4-20mA analog output, USB and Ethernet port for data transferring

10) With sensor self-testing function, include self testing time difference and location function

11) With diagnose mode, display & analysis and diagnose of partial discharge type then automatic

generating test report.

12) Independent double channels noise sensors

13) In-built function-self-tester, and more convenient for use

14) With rechargeable lithium battery, 3.7V/21Ah, continuously working for 8 hours after one time

full charging

15) USB interface and RJ45 Ethernet port

16) Optional accessories includes: TEV sensor, external extended microphone sensor,

HFCT sensor, noise sensor, non-contact type infrared temperature sensor, battery charger etc.

Technical Index

1. TEV measurement

Item	Specification
Sensor	capacitance type
Range	0-60bBmV
Frequency range	3-100MHz
Resolution	1dB
Accuracy	±1dB
Maximum impulse/cycles qty	1400
Minimum impulse rate	10Hz

2. Ultrasonic Measurement

Item	Specification
Range	-7dBuV～68dBuV
Resolution	1dB
Accuracy	±1dB
Sensor sensitivity	-65dB (0dB=1V/ubar RMS SPL)
Sensor center frequency	40kHz
Frequency range	20～100kHz
Sensor diameter	16mm
Heterodyne frequency	38.4kHz

3. HFCT measurement

Item	Specification
Sensor type	HFCT
Range	0pC～25000pC
Minimum impulse rate	10Hz
Frequency response	100kHz～20MHz
Inner diameter	45mm(customization available)
Outer diamete	107 mm(customization available)
Output impedance	50Ω
Output interface	BNC connector

4. Temperature measurement

Item	Specification
Sensor type	Infrared sensor
Range	－20℃～150℃
Accuracy	±1% or 1℃
Response wave length	8～14um
Distance coefficient	15:1
Sending rate	0.95
IP degree	65
Humidity	0～90% RD
Size:	Φ20X90

5. Size & Weight: 240mm×125mm×60mm / 1.2kg

6. Rated input supply for charger: 90-264V AC/ 47-63HZ, charging voltage 12V DC
